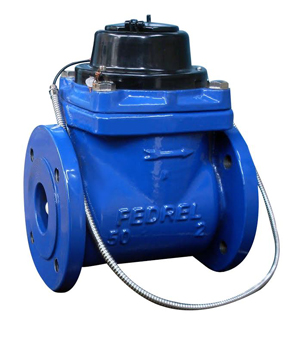

Woltman Type Water Flow Meter with Pulse Output

Overview Features and Benefits Certification Product Catalog
Overview

Description : FEDREL Make Woltman Type Water Meter (Cold & Hot) with Pulse Output Signal
Pulses- The sensor is designed as a potential-free normally open contact. It is closed with frequency proportional to the flow rate by serially integrated magnet within the counter and opens itself automatically again. Typical pulse values are 10, 100 and 1000 L/Imp., depending on the meter size and mounting position. The pulse output sensor does not require its own power supply and is therefore the ideal partner for all electronics devices whose energy supply comes from a battery.
Size range : 40 To 500 MM(1½” To 20”)
Temp Range : 0°C to 45°C
Accuracy Class :Class B (±2 % @ Nominal flow rate)
Product Standard : ISO-4064/IS-2373
Body Material cum Standard : IS-210 Gr. FG-200
Dial Details : Magnetic Drive, Extra Dry Dial
Protection Class : IP-68
End Details : Flanged Ends to BS: 4504 PN 16

Features and Benefits
  • Extra Dry Dial
  • Hermetically sealed register ensures that all internal parts clean and prevents fogging throughout the entire lifetime of the meter.
  • Robust type body to pass the strongest resistance tests in both static and dynamic conditions.
  • High quality engineered materials for hydraulics and register pivot ensure high reliability and durability
  • Shock –resistant material for register and closure.
  • High performance magnetic transmission ensures no part of the register is in contact with water
  • Interchangeable spare parts for easy online maintenance
  • High sensitivity, low pressure loss
  • In-line strainers are standard.
  • Available for both cold and hot water.
  • 100% of the products are calibrated and all calibrations results can be provided
Certification
  • IP-68
  • FCRI
Product Catalog

Woltman Type Water Meter with Pulse Output
    0 KB
Document No: FM-02/03-P
